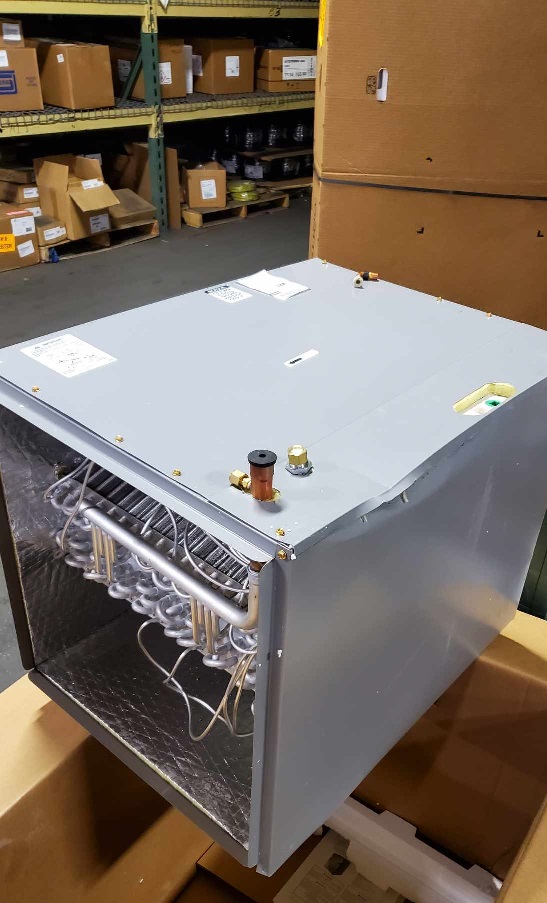

CONCORD COIL EAH1P48CG 4T

Description

EVAPORATOR COILS PRODUCT SPECIFICATIONS

EVAPORATOR COILS FEATURES
Microban® antimicrobial additive in the drain pan to resist mold and mildew growth.
Aluminum tubing, hairpins, distributors and header tubes. Copper refrigerant connections for easy brazing to both liquid and suction lines.
Preformed flanges in outlet for quick and easy plenum connections
One of the lowest water retention drain pans in the industry to minimize mold and mildew growth.
Interlocking door assemblies and snug line seal grommets to minimize air leakage
Foil-face insulation for easy cleaning
Tubing located at door split for easy coil service or cleaning
All drain pans are compatible with UV lights
All piston coils are compatible with R-22 or R-410A
10-year limited parts warranty available when applied with a system. See limited warranty document for details.

Horizontal Coils
EAH1P (Cased)
Dedicated horizontal
Insulated galvanized steel case with durable embossed finish
Removable panels provide access to coil.
Refrigerant lines extend outside of the cabinet for easy connection.

WARRANTY 10 year limited parts warranty available when applied with a system. See limited warranty document for details.
